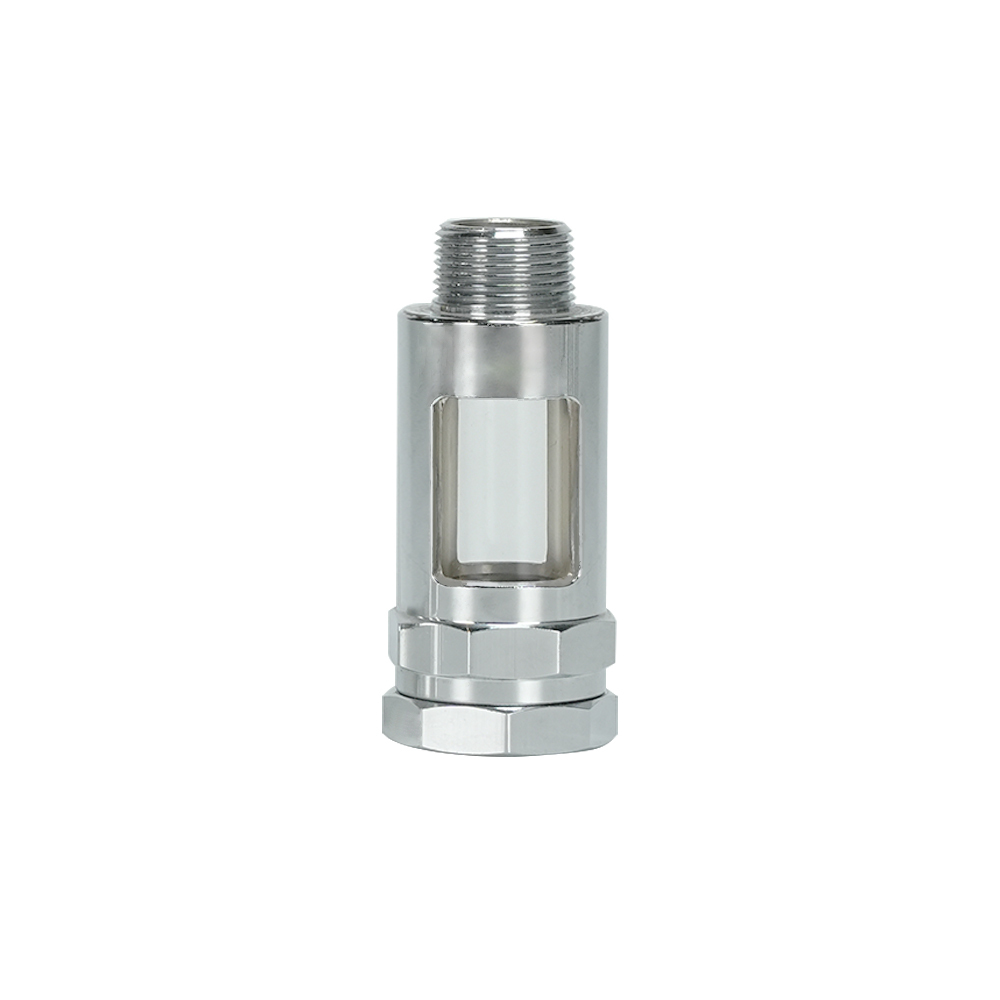

TWO-WINDOW SIGHT GLASS COUPLING

SKU:
Hopetrol two-window sight glass coupling is a high-precision visual monitoring part for fuel dispensers and oil transmission systems. Featuring a symmetrical dual-window design, it provides a wider viewing angle and full observation without dead zones. It can real-timely monitor oil flow status, oil cleanliness and air bubbles. Compatible with gasoline, diesel, it has a stable structure and excellent sealing performance.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • SIZE:
    3/4"
    1"
  • THREAD:
    NPT
    BSP
    Please select the information you wantX
Quantity:
-
+
  • TWO-WINDOW SIGHT GLASS COUPLING
  • TWO-WINDOW SIGHT GLASS COUPLING
1/1
  • TWO-WINDOW SIGHT GLASS COUPLING
  • Description

MATERIAL

  • Body: Brass & Chrome plated
  • Seals: NBR

FEATURES AND BENEFITS
  • Dual-side visual monitoring enables multi-angle observation of oil flow status, quickly judging oil circuit connectivity and oil supply stability, and troubleshooting pipeline blockage and poor oil supply.
  • Fully monitor air bubbles, moisture, impurities and oil emulsification, effectively avoiding vapor lock and oil contamination, ensuring accurate metering and stable equipment operation.
  • The dual-window design facilitates daily inspection, quickly detecting oil leakage at sealing joints and reducing failure risks.

  ORDEPING SPECIFICATION
ITEM NO. DIMENSIONS APPROX D1 MALE THREAD D2 FEMALE THREAD WEIGHT APPROX
D(mm) L(mm) inch inch kg
SG2-NPT3/4 37 99 3/4" NPT 3/4" NPT 0.31
SG2-BSP3/4 37 99 3/4" BSP 3/4" BSP 0.31
SG2-NPT1 39 101 1" NPT 1" NPT 0.4
SG2-BSP1 39 101 1" BSP 1" BSP 0.4
