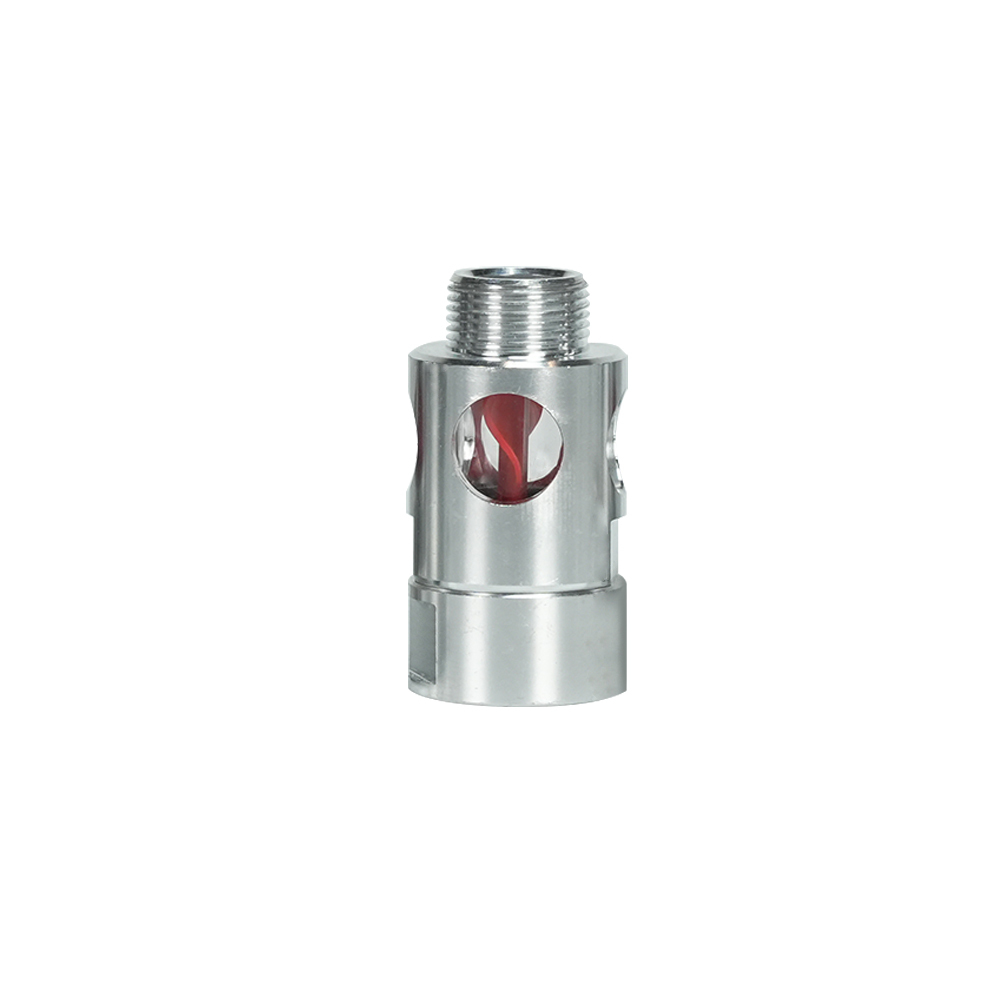

FOUR-WINDOW SIGHT GLASS COUPLING

MATERIAL

• Body: Aluminum, Oxidation treatment
• Seals: NBR

• 360° panoramic visualization enables full-view observation of internal oil supply dynamics. It can clearly check oil circuit on-off and flow velocity at any installation angle, accurately troubleshooting oil cutoff, pipeline blockage                                    and oil supply fluctuation faults.
• Realize multi-angle real-time monitoring of air bubbles, moisture, impurities and emulsification turbidity in oil liquid, effectively eliminating hidden dangers such as vapor lock, oil deterioration and pipeline air intake.
• The four-sided transparent structure facilitates daily inspection and after-sales maintenance. The oil circuit operating condition can be quickly judged without adjusting the pipeline angle, greatly improving maintenance                                                  efficiency.

	ITEM NO.	DIMENSIONS APPROX		D1 MALE THREAD	D2 FEMALE THREAD	WEIGHT APPROX
		D(mm)	L(mm)	inch	inch	kg
	SG4-NPT3/4	40	77	3/4" NPT	3/4" NPT	0.13
	SG4-BSP3/4	40	77	3/4" BSP	3/4" BSP	0.13
	SG4-NPT1	43	82	1" NPT	1" NPT	0.15
	SG4-BSP1	43	82	1" BSP	1" BSP	0.15
