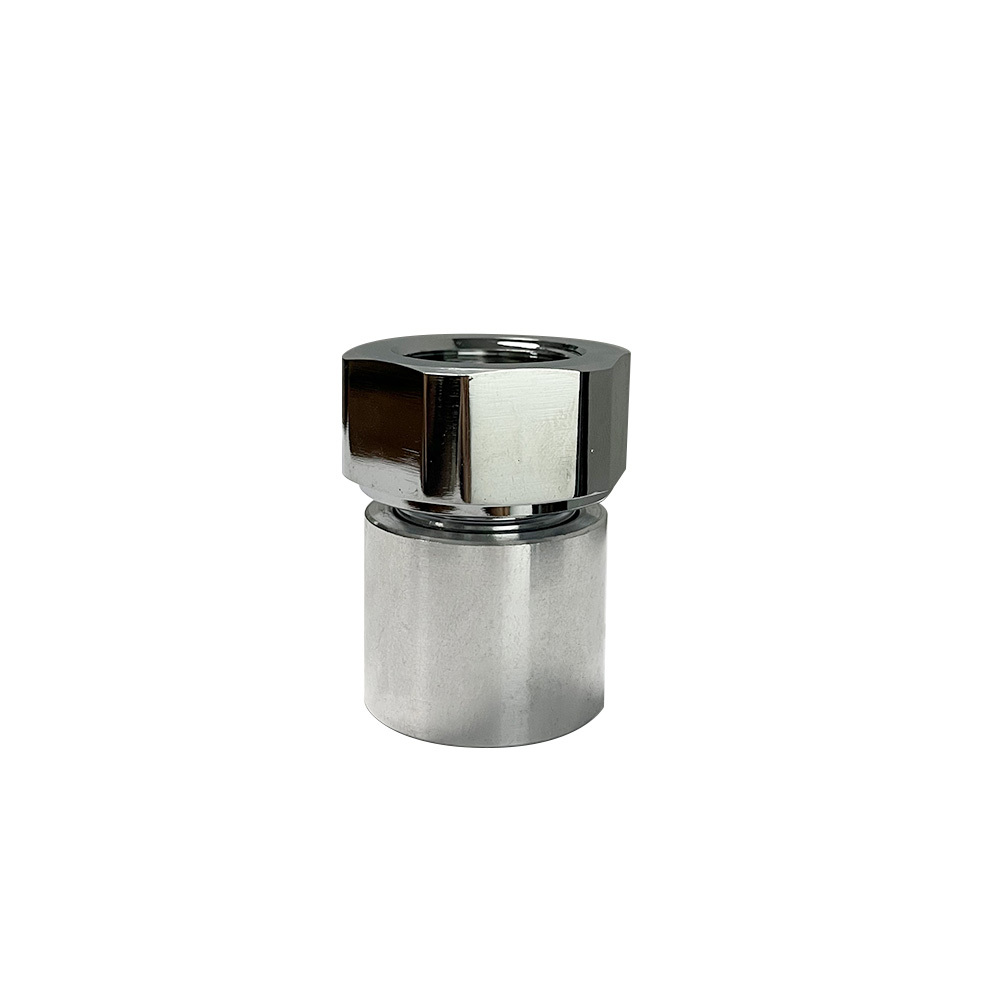

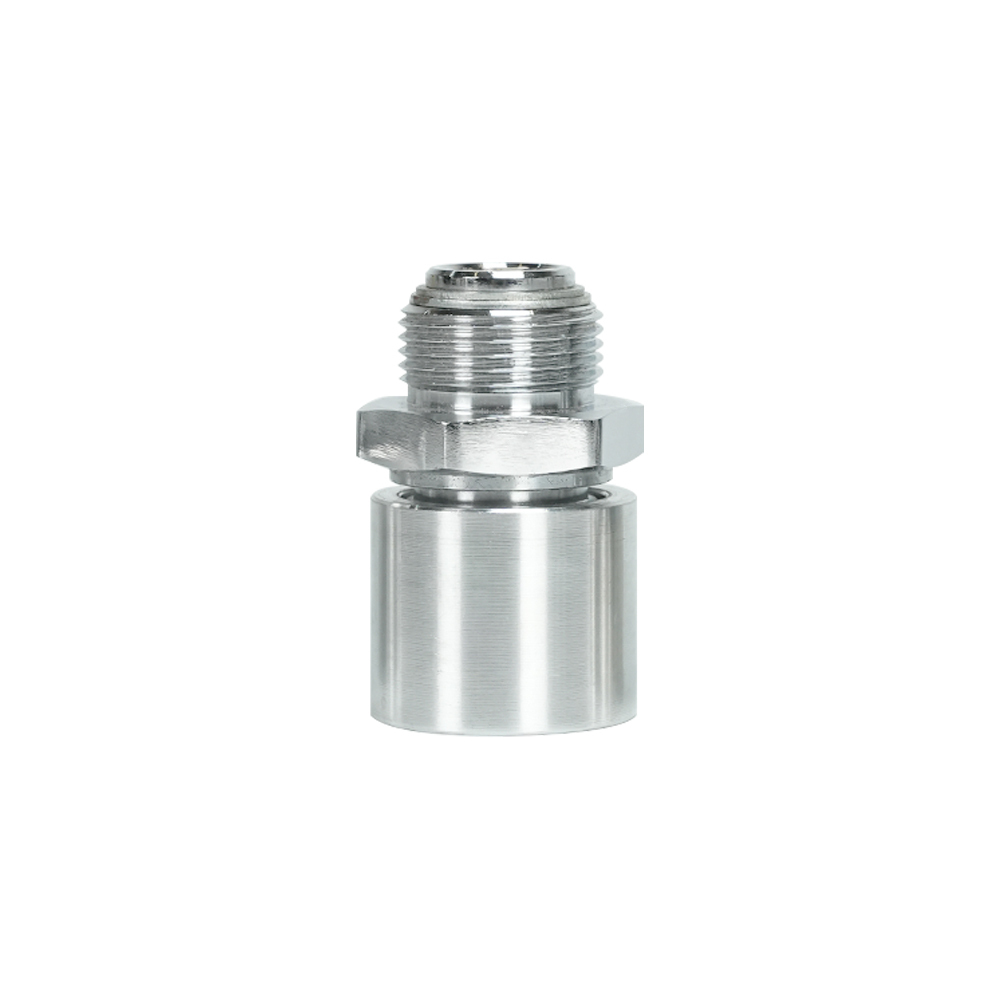

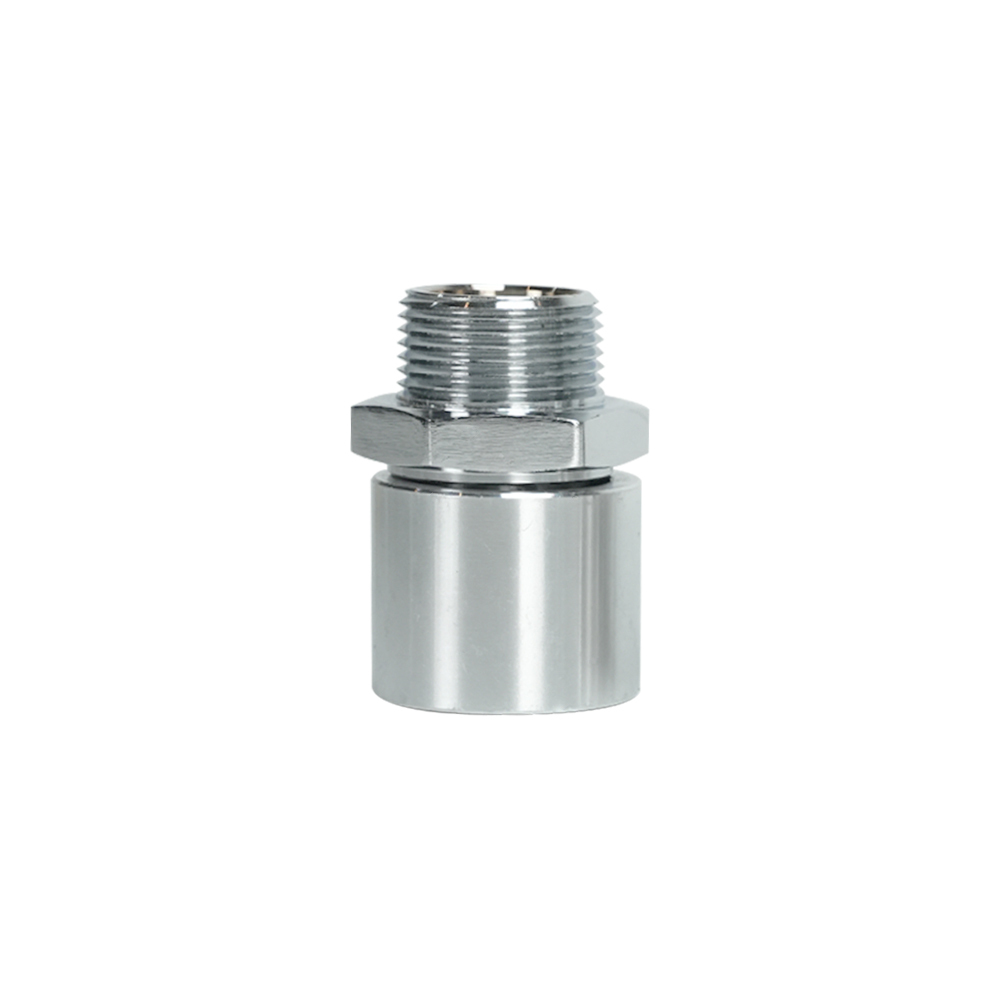

CRIMPING COUPLING STANDARD TYPE

SKU:
Hopetrol Standard Crimping Couplings are engineered to connect fuel hoses with fuel nozzles or other related equipment. The swivel version delivers 360° free rotation; compared with reusable couplings, this crimping style features lighter weight and better cost efficiency.Female crimping couplings provide a secure connection to male-threaded components.
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • CONNECTION MODE:
    MALE CRIMPING
    FEMALE CRIMPING
  • HOSE SIZE:
    16*27
    19*28.5
    19*30
    25*37
  • THREAD:
    NPT
    BSP
    BSPT
    BSPF
  • THREAD SIZE:
    3/4"
    1"
  • STRUCTURE:
    FIXED
    SWIVEL
  • VISION:
    STANDARD TYPE
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (0)
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
1/1
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • CRIMPING COUPLING STANDARD TYPE
  • Description
MATERIAL
  • Mandrel Material: Brass & Chrome plated
  • Ferrule Material: Aluminium alloy
  • Swivel type nut: Brass & Chrome plated
  • Seal Material: NBR/FPM

FEATURES AND BENEFITS

  • Designed to mate with all kinds of male-threaded pipes, fuel nozzles and fittings, forming locked pipeline joints after crimping for gas station fuel hose assembly.
  • Formed by dedicated crimping equipment, the coupling is permanently bonded to the hose to avoid pull-out and loosening risks.
  • Available in various sizes and materials to fit different hose diameters and thread standards.
  • Compact structure reduces overall weight; oil-proof, rust and corrosion resistant materials effectively slow aging for extended service life.

ORDERING SPECIFICATION

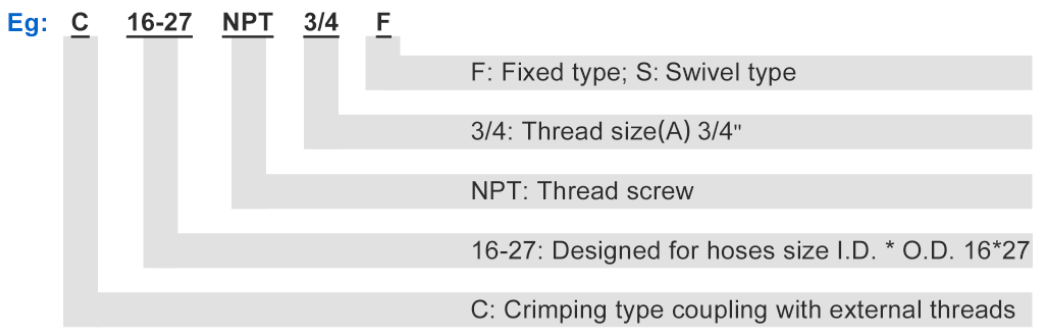

MALE CRIMPING TYPE
ITEM NO. NOMINAL SIZE D1 D2 THREAD SIZE  （A） THREAD SCREW       HOSE SIZE I.D* O.D. SWIVEL WEIGHT FIXED  WEIGHT
inch mm mm inch mm kg kg
      C16-27 5/8" 16.8 27.5 3/4" NPT/BSP/BSPT
(O-ring is optional)		 16*27 0.12 0.11
C19-28.5 3/4" 19.8 29.2 3/4" 19*28.5 0.18 0.16
C25-37 1" 25.5 38 1" 25*37 0.30  0.25

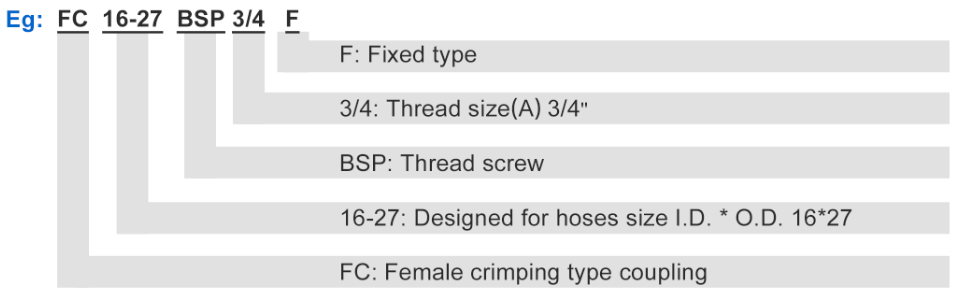

FEMALE CRIMPING TYPE
ITEM NO. NOMINAL SIZE D1 D2 THREAD SIZE  （A） THREAD SCREW       HOSE SIZE I.D* O.D. WEIGHT
inch mm mm inch mm kg
 FC16-27 5/8" 16.8 27.5 3/4" BSP/BSPF
 （Rectangular ring is option）		 16*27 0.16
 FC19-30 3/4" 19.8 30.5 3/4" 19*30 0.18
